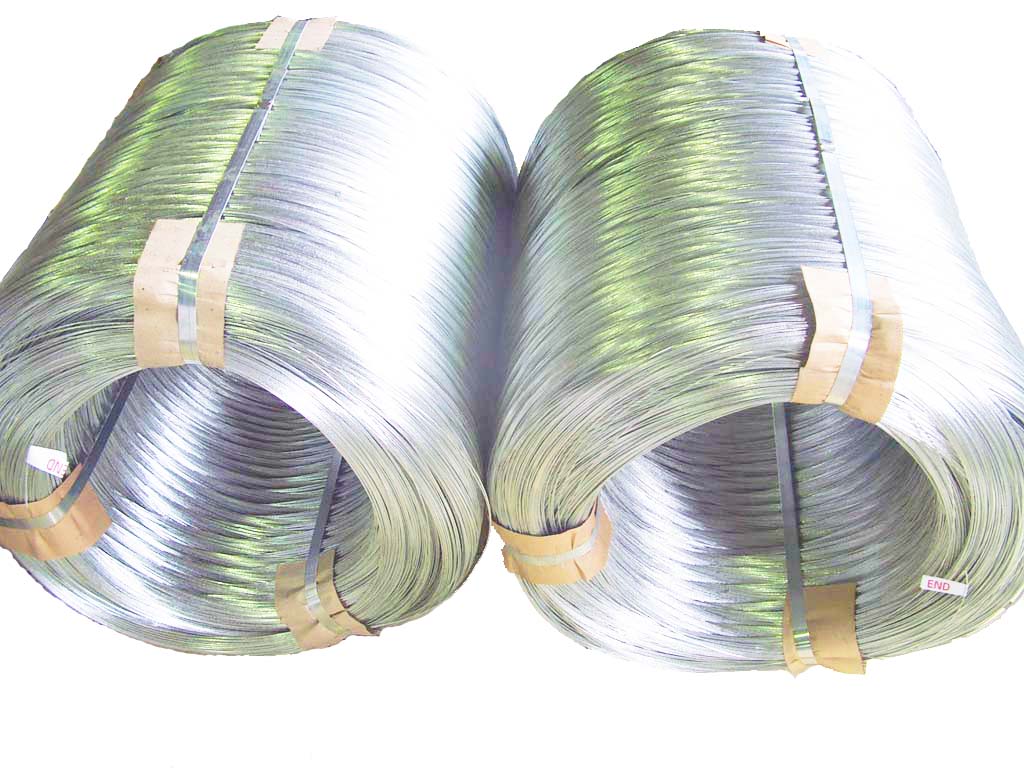

铠装电缆用镀锌丝

---

               专业品质,帮您省心,值得信赖。
我公司长年大量生产并出口铠装电缆用低碳镀锌钢丝,凭借专业的技术团队和多年的生产管理经验,为您提供可靠稳定的质量.
                                                                                                                                                                                                                           我司生产的铠装电缆用镀锌丝具有如下特点:

锌层均匀, 附着牢固, 表面光亮;
丝质柔韧, 性能可靠;
包装规整, 外表美观, 防水防潮;
梅花式撒线,使用方便,不乱线.                                                                                                                                                                                                                                                                            参数:                                                                                                                                                                                                                                         抗拉强度: 340-450 N/mm2.
延 伸 率: >10%
卷    重: 300-800kgs/卷
线    径 (mm): 0.90, 1.25, 1.60, 2.0, 2.5, 3.15, 4.0
线径公差 (mm): +/-0.02,+/-0.03,+/-0.045,+/-0.050,+/-0.065,+/-0.07,+/-0.075
最大电阻值(ohm/km) : 216.92, 122.02, 68.64, 43.93, 28.11, 17.71, 11.55
上 锌 量 (g/m2): 150, 200, 230, 240, 260, 275 , 290
卷径(内/外):450/750,500/800 (随线径和卷重变化).

铠装电缆用热镀锌丝执行标准: ASTM A411, BS EN 10244-2, BS EN10257-1,BS 4545

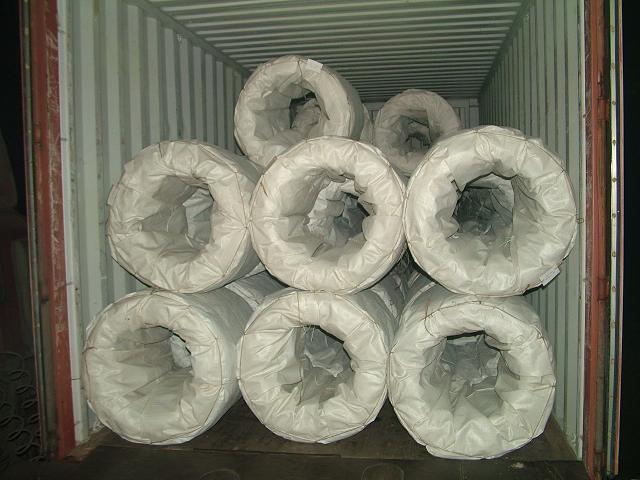

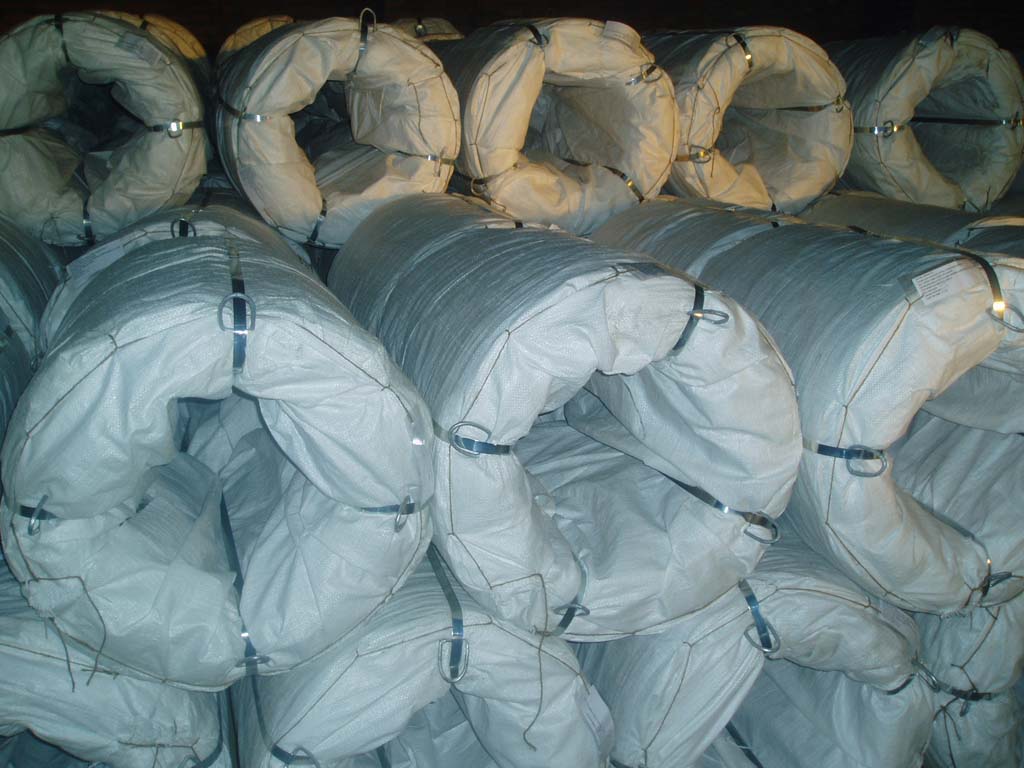

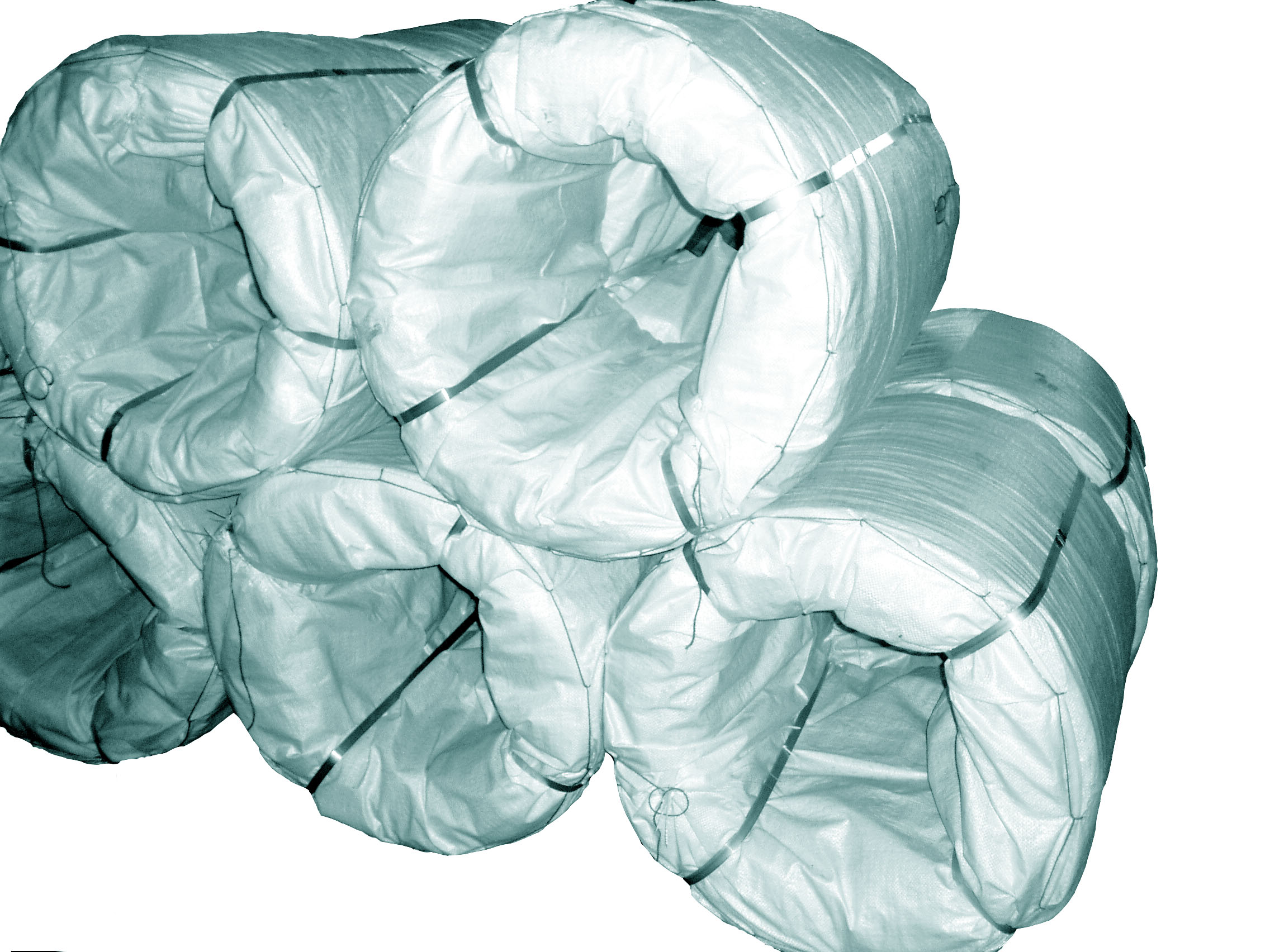

铠装电缆用热镀丝包装: 内塑外编织袋或内塑外麻布包装, 300-800kg.

所有的产品参数可根据客户的实际要求在生产过程中进行调整.
