Location: > EngLish > Products > Steel Nails >

Iron Nails


Products inforation
Material: Q195,Q215,Q235
Category:
Galvanized boat nails, corrugated nails, Brad, thin nails, concrete nails, common nails, gun nails, etc.
Character: Toughness, bending ≥ 90 °, surface finish or galvanized, with superior anti-corrosion and rust.

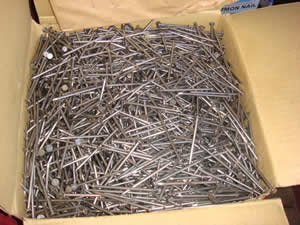

Packing: 25Kg/Carton, according to customer requirements

Common Specifications

Specifications: 1〞---4〞(25mm---100mm)
Technical Specifications: Flat cap, square rod, diamond tip, according to customer requirements.
Product Description: Wood construction, boxes, trays, auto and marine.
Packing: According to customer requirements.



Galvanized Boat Nails
Nail length Specification No. Nail length Specification No.
1" 14BWG 2" 12BWG
15BWG 2-1/2" 10BWG
16BWG 3" 8BWG
1-1/4" 14BWG 3-1/2" 7BWG
1-1/2" 13BWG 4" 6BWG
14BWG 5" 5BWG
1-3/4" 13BWG 6" 4BWG

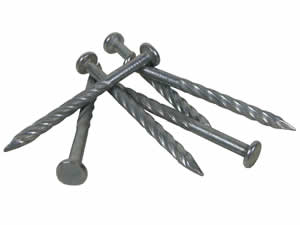

Technical Specifications: The specification model of corrugated nails is nail shank length × number, for example: 2 "× 10G, corrugated nails rod length of 50.80mm, nail strongyloidiasis regulation No. 10G, Shank diameter of 3.40mm. Shank form can be into the light body, ringed, spiral, square, corrugated sheet can be divided into flat-shaped and rounded.
Product Description: Dedicated to the fixed roof of corrugated iron. According to customer requirements and samples.
Packing: According to customer requirements.

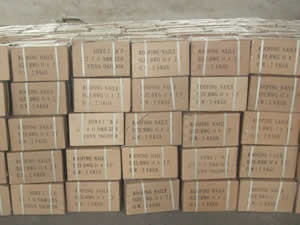

Roofing Nails
Nail length (Inches) Number/lb
10Ga15/32-Inch Head 11Ga 1/16-Inch Head 12Ga3/8-Inch Head
3/4 ... 318 ...
7/8 249 299 388
1 220 271 360
11/4 176 212 282
11/2 147 189 237
13/4 123 157 211
2 ... 140 ...

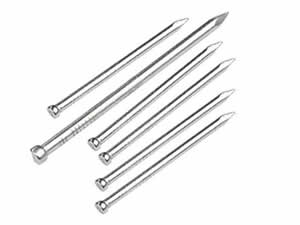

Brad
Nail length Specification No. Nail length Specification No.
3/4" 17BWG 1-1/2" 14BWG
18BWG 15BWG
1" 16BWG 2" 14BWG
17BWG 2-1/2" 13BWG
1-1/4" 15BWG
Thin Nails
Size Nail Length(Inches) Specifications Nail Head Diameter (Inches) The Number of Per Pound
3d(a) 1-1/8 15 11/64 757
3d(b) 1-1/8 15 5/32 765
3d 1-1/8 16 5/32 938
Technical Specifications: The specification of concrete nail determined to the length of nails. Shank diameter size to be divided into heavy and standard. Shank can be divided into light body, ruled, twill, bamboo pattern can be based on customer requirements and samples.
Product Description: Mainly used in hard wood, green brick, cinder blocks, cement mortar and wall components, widely used in modern military construction, utilities installation, renovation, decoration, and so on.

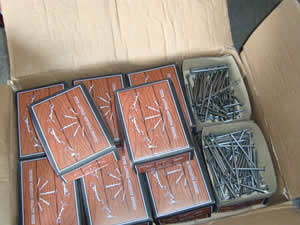

Packing: 25boxes/case, 1Kg/box,0.5Kg/box. Also according to customer requirements.

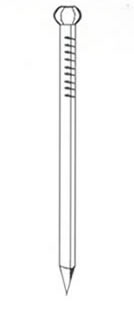

Concrete Nails
Electro Galvanized Blue Plated
The Length of Nails Specification The Number of Per Pound Nails Length Rod Diameter
1" 12BWG 355 20mm 2mm
9BWG 182 25mm 2mm
1-1/4" 12BWG 244 25mm 2.5mm
9BWG 145 30mm 3mm
1-1/2" 12BWG 244 40mm 3mm
9BWG 123 50mm 3mm
2" 12BWG 184 60mm 3.4mm
9BWG 96 70mm 3.4mm
2-1/2" 8BWG 64 80mm 3.4mm





Technical Specifications: Shank diameter:1.2mm~6.0mm, diamond mesh cap, rod, diamond sharp, smooth surface, according to customer requirements and samples.
Product Description: Product is suitable for soft and hard wood, bamboo devices, ordinary plastic, walls, etc., are widely used in construction, decoration, decoration, decoration.
Packing: 25Kg/boxes、23Kg/boxes、19Kg/boxes、12Kg/boxes, etc. According to customer requirements.

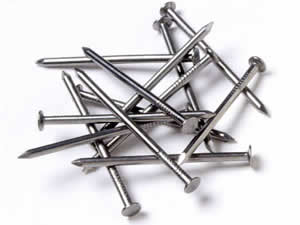

Common Nails

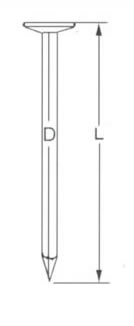

L D L D
Inches M/M BWG Inches M/M BWG
3/8 9.525 20 2 50.800 12/11
1/2 12.700 20/19/18 2-1/2 63.499 11/10
5/8 15.875 19/18 3 76.200 10/8
3/4 19.050 18/17 3-1/2 88.900 8/7
7/8 22.225 18/17 4 101.600 8/6
1 25.400 16 4-1/2 114.300 7/6/5
1-1/4 31.749 15/14 5 127.000 6/5
1-1/2 38.099 14 6 152.400 6/5/4
1-3/4 44.440 13 7 177.800 5/4





Gun Nails
The Length of Nails Rod diameter The Length of Nails Rod diameter
32mm 2.3mm 50mm 3.2mm
35mm 2.6mm 55mm 3.5mm
40mm 2.8mm 60mm 4.0mm
45mm 3.0mm 62mm 4.2mm
Flat Head Nails
Length Specification Length Specification
1/2" 17BWG 3/4" 17BWG
19BWG 19BWG
20BWG 1" 17BWG
5/8" 17BWG
