358 Security Fence

---

Introduction：
Why is it called 358 Mesh Fencing?：'358' comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.

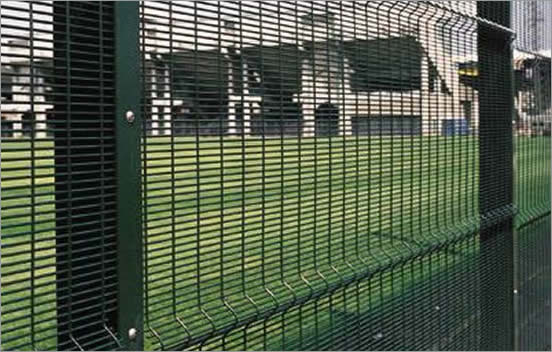

358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.



While 3510 Security Fencing has many of the attributes of 358 Security Fencing and its main strength is it's lighter. Using 3mm wire instead of 4mm allows even better visibility allowing a wider variety of applications. It’s lighter and cheaper so it's ideal for commercial applications.





Features：

• Anti-climb: More small openings, no toe or finger holds.
• Anti-cut: robust wire and welded joints make cutting very difficult.
• High-strength: The superior welding technique and process control create a stronger fusion between the wires.

Finish treatment：There are two treatment types: hot dipped galvanized and plastic coated.
The colors of plastic coated are mainly green and black. Each color is available according to your require.

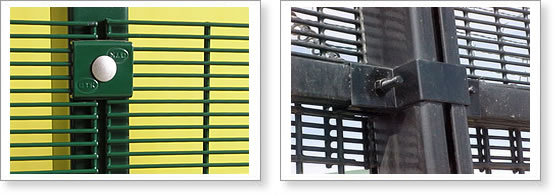

Connection type of host and fence panels, as follows:

Post type：

The post type is main square post. The feet are combined with cement support with the rivet.

Applications：

• Bridge anti-climb guarding & guard safety screening
• Psychiatric hospital security fencing
• Prison security fencing
• Factory machine guards
• Walkway security fencing
• Airport security fencing
• Shipping Port Security fencing
• Electrical sub-station fencing
• Gas pipelines security fence
• High security living area and private field fence.

Specifications：



Panels		Post
Fence	Panel Size	Post Size	Post Height	Total Number of Fixings
Height	Height/Width	Length/Width/Thickness		Inters- 1 clamp	Corners-2 clamp
m	mm	mm	mm
2.0	2007 × 2515	60×60×2.5mm	2700	7	14
2.4	2400 × 2515	60×60×2.5mm	3100	9	18
3.0	2997 × 2515	80×80×2.5mm	3800	11	22
3.3	3302 × 2515	80×80×2.5mm	4200	12	24
3.6	3607 × 2515	100×60×3mm	4500	13	26
3.6	3607 × 2515	100×100×3mm	4500	13	26
4.2	4204 × 2515	100×100×4mm	5200	15	30
4.5	4496 × 2515	100×100×5mm	5500	16	32
5.2	5207 × 2515	120×120×5mm	6200	18	36
