CO2 Gas shielded Welding wire

---

CO2 Gas-shielded Welding wire

MODEL:  AWS 5.18 ER70S-6 COPPER COATED MIG WELDING WIRE
ER70S-6 has excellent welding technological property:
1.stable arc  2. low splashing  3. high deposited effeciency 4. suitable for all position
Specification:
1)Size: 0.8mm,1.0mm,1.2mm,1.6mm
2)Application: for welding of carbon steel and 500Mpa grade low-allow steel, such as vehicles, bridges, construction and machinery structure etc.
AWS A5.18 ER70S-6 Conform with：
GB/T 8110 ER50-6  ISO 636-A-W 42 3 W3Sil   ISO 636-B-W 49A 3 W6
BS EN 1668-W 42 3 W3Sil        JIS Z3316 YGT50

Wire Size	Spool Size	Net Weight
0.8mm 1.0mm 1.2mm 1.6mm	D100mm D200mm D270mm D300mm K300mm	1kg、5kg、15kg、18kg、20kg

chemical composition of welding wire(%)	C	Mn	Si	P	S	Cr	Ni	Cu
	0.06~0.15	1.40~1.85	0.80~1.15	≤0.025	≤0.035	-	-	≤0.50
Mechanical Properties of Deposited Metal	Yield strength (Mpa)		Tensile strength (Mpa)		Elongation (%)		AKV (J)
	≥420		≥500		≥22		≥27(-30℃)





Wire Size (mm)	φ0.8	φ1.0	φ1.2	φ1.6	Welding position
Welding current(A)	40~140	50~220	80~350	120~550
Please be noted	Wire shall be stocked in dry.open the packs just when welding to avoid the wire rust.
	Before welding please clean out the oil,rust,water etc from the work parts


Packing Detail:

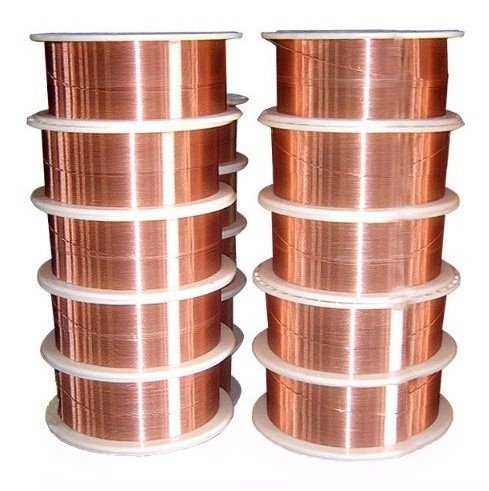

precision layer wound on plastic spool, each spool in a box, then boxes on wooden pallets.
1kg per D100mm plastic spool, then 1000spools per pallet;
5kg per D200mm plastic spool, then 200spools per pallet;

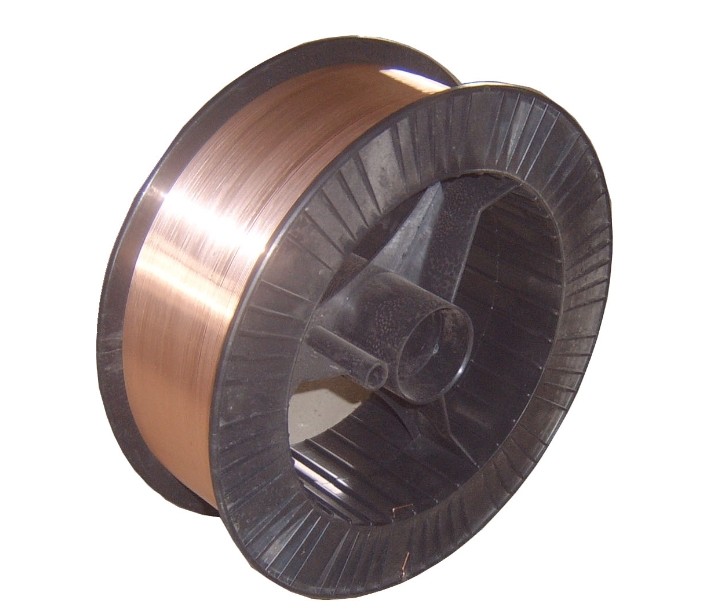

15kg per D270mm black or white plastic spool, D300mm black plastic spool,
K300 metal basket with core or without inner core, then 72spools per pallet.

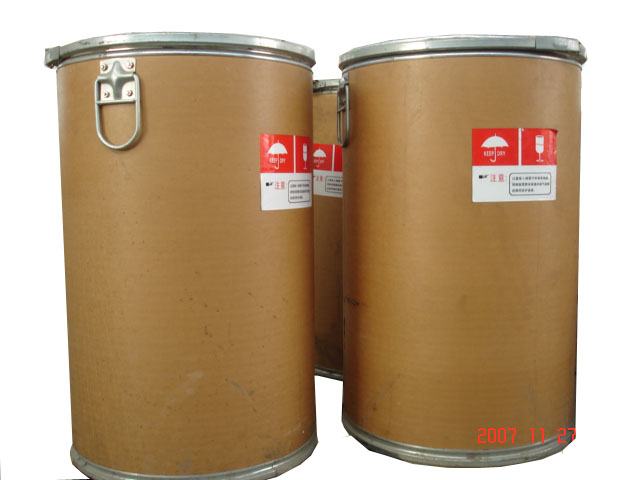

100kg or 250kg per drum, then 4drums per pallet
